CDS5002428H1pc
Discontinued product
Category Switching power supplies
Manufacture Cosel
Stock Order
Ship date 4week (inquiry before Shipment)
Price US$147.59
Standard Packing Qty 1pc
Minimum Order Qty 1pc
Quantity cart
Cosel Power module type CDS5002428H 1pc

Power supplies
Power module type
DC-DC converter/Single output

DC-DC Converters power Module type CDS500/600

Max output wattage [W]: 600
Input voltage [V]: DC19 - 36
Output voltage [V]: 28
Output current [A]: 22
Output voltage adjustment range* [V]: 22.40 - 32.00*1 *2, Fixed (TRM pin open), 80 - 110% adjustable by external VR or external voltage
*1When the output voltage adjustment range is 101% or more,the input voltage range is limited.
*2Output voltage adjustment range is 80 - 114.3%.

Operating temp., humid. and altitude:
:-20 to +85℃*3(On aluminum base plate)
:20 - 95%RH (Non condensing) (Refer to derating curve)
*3Please consult us in regard to use from -40℃
Case size: 61x12.7x116.8mm [2.4x0.5x4.6 inches] (WxHxD)
Weight: 200g max
Cooling method: Conduction cooling (e.g. heat radiation from the aluminum base plate to the attached heat sink)

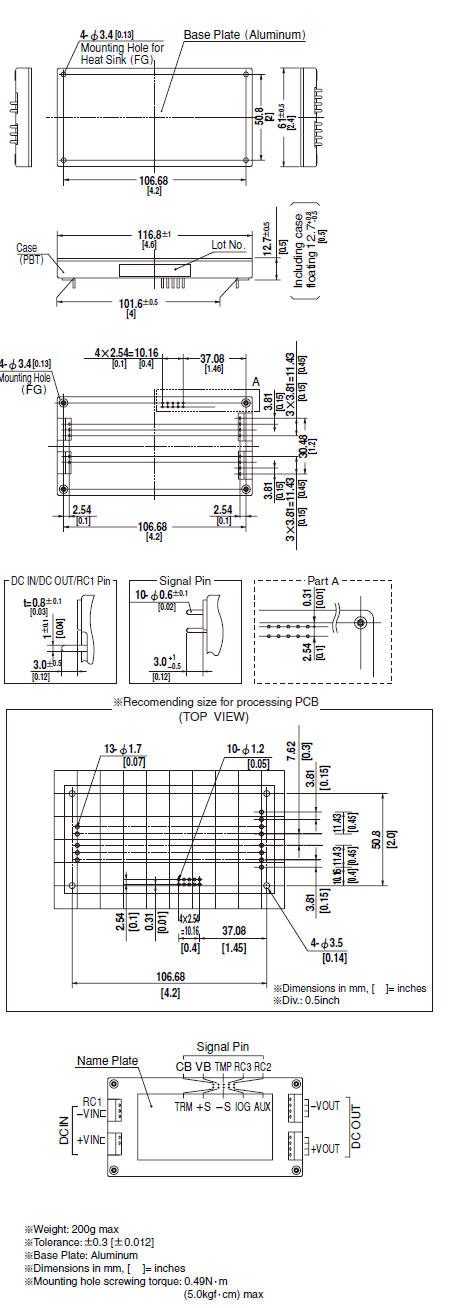

Structure_of_CDS500_600

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
CDS5002428H 1pc 1pc US$147.59 US$147.59 1pc 4week
