ADA750F-24 1pc Switching power supplies Cosel
| Category | Switching power supplies |
| Manufacture | Cosel |
| Stock | Order |
| Ship date | inquiry (inquiry before Shipment) |
| Price | US$219.03 |
| Standard Packing Qty | 1pc |
| Minimum Order Qty | 1pc |
Power supplies
Unit type
Single output
ACAC-DC Power Supplies Enclosed type
Input Rated voltage [V]:
AC85 - 264 1φ or DC120 - 350(AC64 or DC90 optionally available)
Output Rated current [A]
ACIN 100V*: 17 (Peak 42) convection, 25 (Peak 42) forced air
ACIN 200V*: 19 (Peak 63) convection, 31.5 (Peak 63) forced air
*Peak loading for 10sec.and duty 35% max
Output voltage adjustment ranage [V]: 21.6 - 27.0
Operating temp., humid. and altitude:
:-10 to +71℃
: 20 - 90%RH (Non condensing) (Refer to derating curve)
:3,000m (10,000feet) max

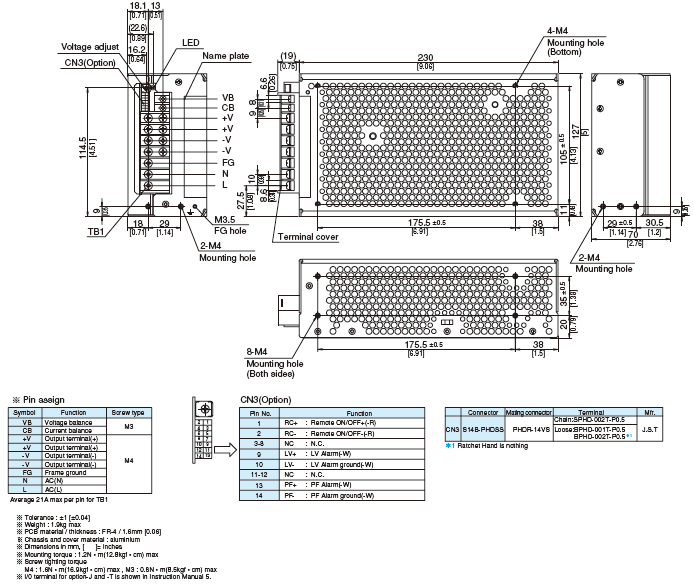

Case size:: 70x127x230mm [2.76x5x9.06 inches] (WxHxD) (without terminal block)
Weight: 1.9kg max
Cooling method: Convection/Forced air
RoHS compliant
Safty approvals
UL60950-1
C-UL(CSA60950-1)
EN60950-1
EN60065
EN50178 Complies with DEN-AN
IEC60950-1 (At only AC input)
Sort by selling qty
| Model No | Quantity | Price | Unit Price | SPQ | Ship date |
|---|---|---|---|---|---|
| ADA750F-24 1pc | 1pc | US$219.03 | US$219.03 | 1pc | inquiry |
