Electronic Components Distributor > Hirose Electric > Connectors > Round shaped connectors > JRC16BP-14P(71) 100pcs
JRC16BP-14P(71)100pcs
Discontinued product
Category Connectors
Manufacture Hirose Electric
Stock Order
Ship date inquiry (inquiry before Shipment)
Price US$1,050.00
Standard Packing Qty 1pc
Minimum Order Qty 100pcs
Quantity cart

Wiring components
Round shaped connectors

Aluminum Connector [JR Series]

This series are designed to meet JIS C 5432 specification.

Shell size: 16φ
Shell type: Receptacle, Straight, Screw lock: Panel mount
No. of contacts: 14
Connector type: Bayonet Lock Type plug
Contact type: Male pin, Soldering type
Contact mating area plating: Silver
Rated current: 5A
Operating temperature range (degrees Celsius): -25 to +85
Mating/Unmating cycles: 500
RoHS compliant

Dimension(mm) ΦA=16.3,ΦB=27,C=91,ΦD=11.2
HRS No.114-0251-1 71

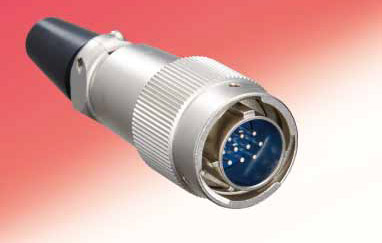

Image_JRC-BP-P_S.

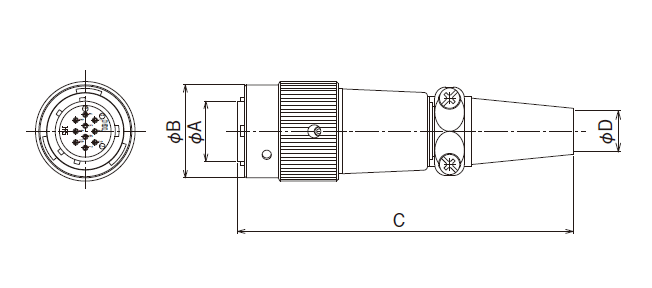

Dimension_JRC-BP-P_S.

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
JRC16BP-14P(71) 100pcs 100pcs US$1,050.00 US$10.50 1pc inquiry
