Electronic Components Distributor > Mac8 > PCB mounting parts > Mounting pins for coaxial cables > CY-1-1 1000pcs
CY-1-11000pcs
Category PCB mounting parts
Manufacture Mac8
Stock Order
Ship date 20week (inquiry before Shipment)
Price US$350.00
Standard Packing Qty 100pcs
Minimum Order Qty 1000pcs
Quantity cart
Mac8 Mounting pins for coaxial cables CY-1-1 1000pcs

PCB components
Mounting pins for coaxial cables

Horizontal mount pin for coaxial cable

Use it when coaxial cable is mounted horizontally on PCB.
Soder the cable core and tighten with pliers on the side of shield.

Material
Metal part: Brass, Sn plating over Ni
Resin part: Teflon(UL94V-0)
Recommended through-hole diameter: 1.2Φ to 1.3Φ
Compatible coaxial cable: 1.5C-2V

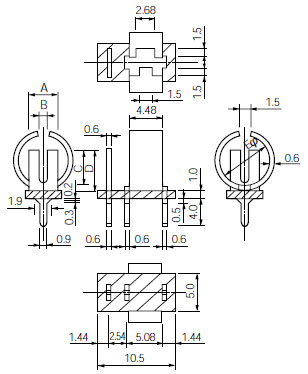

Dimensions(mm): (A)3.0(B)0.8(C)3.0(D)4.0(E)3.7
RoHS compliant
image_mac8_cy-d.

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
CY-1-1 1000pcs 1000pcs US$350.00 US$0.35 100pcs 20week
