Electronic Components Distributor > Mac8 > Connectors > Banana plugs > BR-1-N Green 100pcs
BR-1-N Green100pcs
Category Connectors
Manufacture Mac8
Stock Order
Ship date inquiry (inquiry before Shipment)
Price US$73.00
Standard Packing Qty 10pcs
Minimum Order Qty 100pcs
Quantity cart
Mac8 Banana plugs BR-1-N Green 100pcs

Wiring components
Banana plugs
Jacks

Jack for banana plugs

Use for mounting jack to a panel.
Use with BN series.

Color: Green
Material
Color...Body: Yellow/ Mount bracket: Black only
Metal part
Metal part: Brass
Resin part: PEE(UL94V-1, Body&mount bracket)
Finish: Ni plating
Rated current: 15A
Insulation resistance: 500M ohm or more
Dielectric Strength: 1000V AC, DC 1min
Applicable plug: BN series
Operating temeprature range (degrees Celsius): -40 to +125
Recommentded through hole diameter(phi mm): 9.0
Recommended PC board thickness(mm): 1.2~3.0
Operating temeprature range (degrees Celsius): -40 to +125

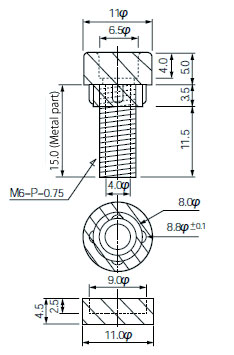

image_mac8_br-d.

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
BR-1-N Green 100pcs 100pcs US$73.00 US$0.73 10pcs inquiry
