Electronic Components Distributor > Mac8 > Connectors > Connectors for PCB > XR-4 100pcs
XR-4100pcs
Category Connectors
Manufacture Mac8
Stock Order
Ship date 4week (inquiry before Shipment)
Price US$212.00
Standard Packing Qty 10pcs
Minimum Order Qty 100pcs
Quantity cart
Mac8 Connectors for PCB XR-4 100pcs

Wiring components
Connectors for PCB
Jumpers
Connecting type

Jumper socket [XR series]
Can short-circuit, such as IC part.
Can switch max. 20 lines.

Pin part: Be Cu, Au plating over Ni
Resin part: PBT(UL94V-0)

Rated current: 1A
Rated voltage: 125V AC,DC
Contact resistance: 50m ohm or less
Insulation resistance: 500M ohm or more
Dielectric strength: 1000V AC,DC 1min

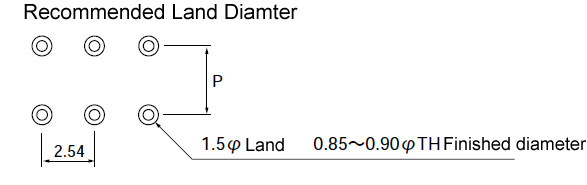

Applicable through-hole diameter(contact side): 0.85 to 0.90 phi mm TH, finished diameter(please make each hole as 0.85 phi mm)
Applicable PCB thickness: 0.8 to 1.6t
Pitch distance: 10.16mm
Dimensions(mm) A: 9.66 B: 14.16 H: 2
Operating temperature range(degree celcius): -40 to +125
Operating humidity range: 0 to 85%RH (no condensation)
Duability: 50 times or less (to the same through-hole)
RoHS compliant
image_mac8_xr-d.
image_mac8_xr_1.

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
XR-4 100pcs 100pcs US$212.00 US$2.12 10pcs 4week
