WS-1 10pcs Sockets Mac8
| Category | Sockets |
| Manufacture | Mac8 |
| Stock | Order |
| Ship date | 4week (inquiry before Shipment) |
| Price | US$103.30 |
| Standard Packing Qty | 10pcs |
| Minimum Order Qty | 10pcs |
PCB components
Socket pins
Sandwich sockets
Socket pins [WS Series]
20 pins connected at 2.54mm pitch.
Material
Resin part: PBT black (UL94V-0)
Body part: Brass
Contact part: Beryllium copper
Finish
Body part: Au plating over Ni
Contact part: Au plating over Ni
Rated current: 1A
Rated voltage: 125V AC, DC
Contact resistance: 10m ohm or less
Insulation resistance: 500M ohm or more
Dielectric strength: 1000V AC, DC 1min
Operating temperature range(degree celcius): -40 to +125
Recommended through-hole diameter: 1.6phi mm
Recommended male pin diameter: 0.45 to 0.6phi mm
Applicable male pin: OY-002 black, MX-3-1
Mating/unmating (durability): 100 or more
Mating/unmating Forces (1 pin): 70g or more
Shock-proof: 150G
RoHS compliant

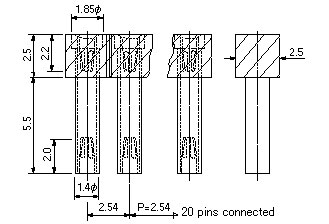

Dimensions
Sort by selling qty
| Model No | Quantity | Price | Unit Price | SPQ | Ship date |
|---|---|---|---|---|---|
| WS-1 10pcs | 10pcs | US$103.30 | US$10.33 | 10pcs | 4week |
| WS-1 100pcs | 100pcs | US$934.00 | US$9.34 | 10pcs | 4week |
