Mac8 Connectors for PCB WLW-8-11 100pcs

Wiring components
Connectors for PCB
Connectors for DIP board
Terminals for wrapping

Wirewrap terminal [WLW-x-x Series]

34 pins connedted each at 2.54mm pitch in 2 row.
SUpper and lower pins have different length.

Material
Resin part: PBT black(UL94V-0)
Pin part: Phosphor bronze, Au plating over Ni
Rated current: 3A
Insulation resistance: 500M ohm or more
Dielectric strength: 1000V AC, DC 1min
Recommended through-hole diameter: 1.0 to 1.1 phi mm
Operating temperature range(degree celcius): -40 to +125

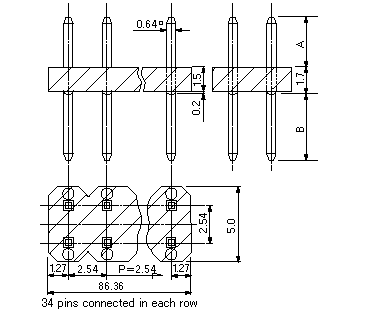

Dimensions(mm) A: 8.0 B: 11.0
RoHS compiant
image_mac8_wlw-x-x-d.

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
WLW-8-11 100pcs 100pcs US$548.00 US$5.48 10pcs inquiry
