Electronic Components Distributor > Mac8 > Adjusting parts > For two-tiered insert and removes > SY-003 100pcs
SY-003100pcs
Category Adjusting parts
Manufacture Mac8
Stock Order
Ship date 6week (inquiry before Shipment)
Price US$366.00
Standard Packing Qty 10pcs
Minimum Order Qty 100pcs
Quantity cart
Mac8 For two-tiered insert and removes SY-003 100pcs

PCB components
For two-tiered insert and removes

b to b connector, Mate/unmate with socket [SY Series]

Use it to make double pile PC boards by 1.778mm pitch
You can cut it by a nipper(MOC-3) as you need.

21 pins connected at 1.778mm pitch.
Material
Resin part: PBT black(UL94V-0)
Pin part: Brass, Au plating over Ni

Applicable socket pin: PD-6, PM-6
Operating temperature range(degree Celsius): -40 to +125
Dimensions A: 0.6phi mm B: 2.8mm H: 10.0mm
Recommended through-hole diameter: 0.6phi mm
*H is the space between PCBs with PD-6, PM-6.
RoHS compliant

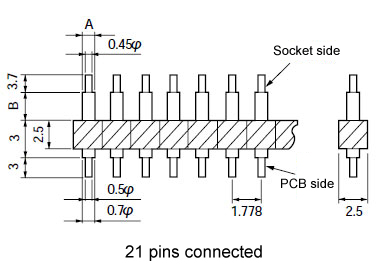

image_mac8_sy-d.

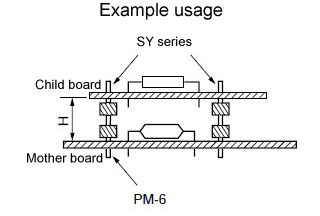

image_mac8_sy_1.

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
SY-003 100pcs 100pcs US$366.00 US$3.66 10pcs 6week
