PP-5-3 Green 100pcs Sockets Mac8
| Category | Sockets |
| Manufacture | Mac8 |
| Stock | Order |
| Ship date | 2week (inquiry before Shipment) |
| Price | US$96.00 |
| Standard Packing Qty | 10pcs |
| Minimum Order Qty | 100pcs |
PCB components
LED sockets for panel

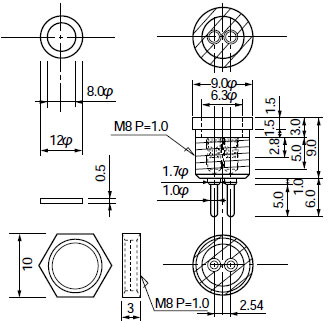

LED scocket for panels [PP-5-3]
Mount it to a panel, and then, 5phi mm LED can be mounted.
It is easy to exchange.
Main body has six colors.
Material
Main body
Resin part: PPO(UL94V-1)
Metal part: Body- Brass, Au plating over Ni Contact part: Beryllium copper, Au plating over Ni
Nut: PPO resin Black(UL94V-1)
Washer: Nylon translucence (UL94HB)
Body color: Green
Rated current: 4A
Contact resistance: 10m ohm or less
Insulation resistance: 500M ohm or more
Dielectric strength: 1000V AC, DC 1min
Mating/unmating duability: 100 times or more
Mating/unmating force: 250g or more
Operating temperature range(degree Celsius): -40 to 125
Adaptable male pin diameter: 0.6 to 0.8phi mm, 0.5 square mm
Adaptable male pin pitch: 2.5, 2.54mm
Possible panel mounting thickness: 1.0 to 3.0mm
Recommended panel mounting holes diameter: 8.0phi mm
Please use tightening torque 2kgf.cm or less.
Please cut LED leg 4.0 to 5.0mm
RoHS compliant
Sort by selling qty
| Model No | Quantity | Price | Unit Price | SPQ | Ship date |
|---|---|---|---|---|---|
| PP-5-3 Green 100pcs | 100pcs | US$96.00 | US$0.96 | 10pcs | 2week |
