PCWS-1-1 10pcs Sockets Mac8
| Category | Sockets |
| Manufacture | Mac8 |
| Stock | Order |
| Ship date | 8week (inquiry before Shipment) |
| Price | US$219.20 |
| Standard Packing Qty | 10pcs |
| Minimum Order Qty | 10pcs |
PCB components
Connecting sockets for SMT

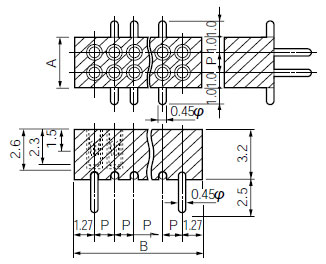

Socket pin with the placement pins [PCWS Series]
Connected in 2 row type
Specification is the same as PCW series.
This series has pins on both ends which make the placement easy.
Material
Body part: Brass
Contact part: Beryllium copper
Resin part: PCT black (UL94V-0)
Finish
Body part: Sn plating over Ni
Contact part: Au plating over Ni
Rated current: 1A
Rated Voltage: 125V AC, DC
Contact resistance: 10m ohm or less
Insualtion resistance: 500M ohm or more
Dielectric strength: 700V AC, DC 1min
Operating temperature range(degrees Celsius): -40 to +125
Mating/unmating (times): 100 times or more
Mating/unmating forces: 30g or more
Recommended male pin diameter: 0.35 to 0.47phi mm
RoHS compliant
Sort by selling qty
| Model No | Quantity | Price | Unit Price | SPQ | Ship date |
|---|---|---|---|---|---|
| PCWS-1-1 10pcs | 10pcs | US$219.20 | US$21.92 | 10pcs | 8week |
| PCWS-1-1 100pcs | 100pcs | US$2,082.00 | US$20.82 | 10pcs | 8week |
