Electronic Components Distributor > Mac8 > Sockets > Socket pins > MEW-2-1 100pcs
MEW-2-1100pcs
Category Sockets
Manufacture Mac8
Stock Order
Ship date 6week (inquiry before Shipment)
Price US$1,049.00
Standard Packing Qty 10pcs
Minimum Order Qty 100pcs
Quantity cart
Mac8 Socket pins MEW-2-1 100pcs

PCB components
Socket pins
For two-tiered

Super small b to b connector/Scoket pin

Connect the boards with MXW-2series.
30 pins connected each at 1.774mm pitch in 2 row.
RoHS compliant

Material
Resin part: PPS Black(UL94V-0)
Pin part...Body: Brass(Sn plating over Ni)
Contact part: Beryllium copper(Sn plating over Ni)

Operating temperature range(degrees Celsius): -40 to +125
Rated current: 1A
Insulation resistance: 500M ohm or more
Dielectric strength: 700V AC,DC 1min
Mating/unmating duability: 100 times or more
Contact resistance: 10m ohm or less
Mating/unmating forces: 30g or more/pin
Adaptable male pin diameter: 3.5 to 0.47phi mm
Recommended through-hole diameter: 0.9 to 1.0phi mm

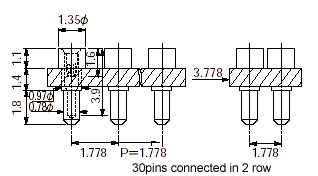

image_mac8_mew-2-1-d.

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
MEW-2-1 10pcs 10pcs US$116.20 US$11.62 10pcs 6week
MEW-2-1 100pcs 100pcs US$1,049.00 US$10.49 10pcs 6week
