Electronic Components Distributor > Mac8 > Connectors > Connectors for PCB > HQS-2-10 100pcs
HQS-2-10100pcs
Category Connectors
Manufacture Mac8
Stock Order
Ship date 5week (inquiry before Shipment)
Price US$250.00
Standard Packing Qty 10pcs
Minimum Order Qty 100pcs
Quantity cart
Mac8 Connectors for PCB HQS-2-10 100pcs

Wiring components
Connectors for PCB
Connecting pins for SMT

Connector with the Placement Pins

This series has pins on both ends which make the placement easy.
Specification is the same as HQ Series.

Material
Resin part: PCT black (UL94V-0)
Pin part: Copper Brass (for the placement pin)
Finish: Au plating over Ni

Current rating: 3A
Dielectric Strength: 1000V AC, DC 1min
Insulation resistance: 500M ohm or more
Insulation resistance: 500M ohm or more
Temperature range (degrees Celsius): -40 to +125
RoHS compliant
No. of pins: 20P
Pitch distance: 2.54mm

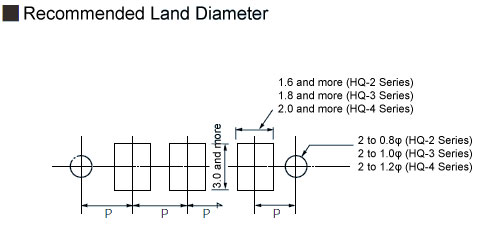

Dimensions: (A)0.6 phi mm (B)10mm (C)1.0mm (D)1.65mm (E)2.0mm (F)0.635mm
image_mac8_hqs.

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
HQS-2-10 100pcs 100pcs US$250.00 US$2.50 10pcs 5week
