Electronic Components Distributor > Mac8 > Connectors > Connectors for PCB > WL-8-11 100pcs
WL-8-11100pcs
Category Connectors
Manufacture Mac8
Stock Order
Ship date inquiry (inquiry before Shipment)
Price US$286.00
Standard Packing Qty 10pcs
Minimum Order Qty 100pcs
Quantity cart
Mac8 Connectors for PCB WL-8-11 100pcs

Wiring components
Connectors for PCB
Connectors for DIP board
Terminals for wrapping

Wirewrap terminal [WL-x-x series]

34 pins connected at 2.54mm pitch.

Upper and lower pins have different length.
You can cut the number of poles as you want by nippers(MOC-3 series).

Material
Resin part: PBT black(UL94V-0)
Pin part: Phosphor bronze, Au plating over Ni
Rated current: 3A
Insulation resistance: 500M ohm or more
Dielectric strength: 1000V AC, DC 1min
Recommended through-hole diameter: 1.0 to 1.1 phi mm
Operating temperature range(degree celcius): -40 to +125
Dimensions(mm) A: 8 B: 11
RoHS compiant

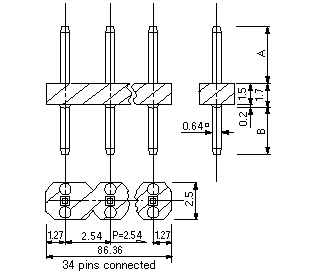

image_mac8_wl-x-x-d.

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
WL-8-11 100pcs 100pcs US$286.00 US$2.86 10pcs inquiry
