Electronic Components Distributor > Mac8 > Sockets > Sockets for LED > LQS-4-5 100pcs
LQS-4-5100pcs
Category Sockets
Manufacture Mac8
Stock Order
Ship date 3week (inquiry before Shipment)
Price US$168.00
Standard Packing Qty 10pcs
Minimum Order Qty 100pcs
Quantity cart
Mac8 Sockets for LED LQS-4-5 100pcs

PCB components
Sockets for LED
SMT type

Square socket for LED [LQS-4-5]

Socket for SMT
Use it for square LED.
Use it when mounting LED for test and/or to SMT boards.

Material
Resin part: PPS black(UL94V-0)
Socket part: Body- Brass, Contact- Beryllium copper
Finish: Au plating over Ni

Rated curent: 3A
Rated volatage: 125V AC, DC
Contact resistance: 10m ohm or less / pin
Insulation resistance: 500M or more
Dielectric resistance: 1000V AC, DC 1min
Mating/unmating duability: 100 times or more
Mating/unmating forces: 70g / pin
Operating temperature range(degrees Celsius): -40 to +125
Adaptable male pin diameter: 0.5? to 0.64?, 0.6 to 0.8phi mm, 0.4 x 0.76
RoHS compliant

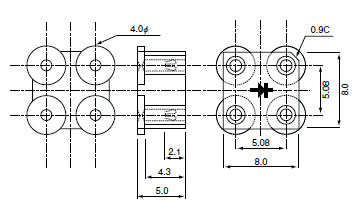

image_mac8_lqs-4-5-d.
image_mac8_lqs-4-5_1.

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
LQS-4-5 100pcs 100pcs US$168.00 US$1.68 10pcs 3week
