Electronic Components Distributor > Mac8 > Sockets > Sockets for LED > LQR-4-5-W 100pcs
LQR-4-5-W100pcs
Category Sockets
Manufacture Mac8
Stock Order
Ship date 3week (inquiry before Shipment)
Price US$538.00
Standard Packing Qty 1pc
Minimum Order Qty 100pcs
Quantity cart
Mac8 Sockets for LED LQR-4-5-W 100pcs

PCB components
Sockets for LED
DIP type

Socket for LED [LQR-4-5]

This socket is for square LED.
Use it when it is put inside of pipes etc.

Material
Resin part: PPS Black(UL94V-0)
Socket: Body part- Brass, Contact- Beryllium copper
Finish: Au plating over Ni

With electric cables(AWG28)
Current Capacity: 3A(without electric cables)
Rated voltage: 125V AC, DC
Contact resistance: 10m ohm or less/pin
Insulation resistance: 500M ohm or more
Dielectric strength: 1000V AC, DC 1min
Mating/unmating duability: 100 times or more
Mating/unmating forces: 70g or more/pin
Operating temperature range (degrees celcius): -40 to +125(without electric cables)
Adaptable male pin diameter: 0.5 to 0.64, 0.4 x 0.76, 0.6 to 0.8 phi mm
RoHS compliant

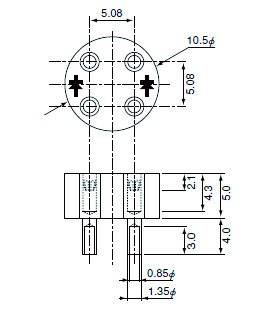

image_mac8_lqr-4-5-d.
image_mac8_lqr-4-5_1.

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
LQR-4-5-W 100pcs 100pcs US$538.00 US$5.38 1pc 3week
