JH-2-A-B White 100pcs Connectors Mac8

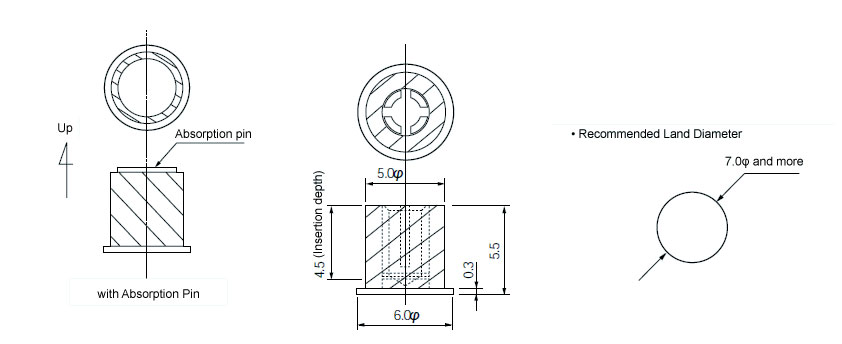

Jack for surface mount [JH-A Series]

It can be used for chip mounter.
It can be inserted plugs longitudinally.
Adaptable plug: 2.0phi mm
We have OP-7-1, OP-7-2, OP-7-2-100 plugs with electric wire.
Material
Socket part: Phosphor bronze
Resin part: Teflon(UL94V-0)
Finish: Au plating over Ni
Color: White

Rated current: 10A
Contact resistance: 20m ohm or less
Insulation resistance: 1000M ohm or more
Dielectic strength: 1000V AC,DC 1min
Adaptable male pin: 2.0phi mm
Insertion force: 800g or less
Removal force: 100g or more
Insertion/removal duability: 1000 times or more
Operating temperature range (degree Celsius): -55 to +200
Bulk package(10pcs/bag)
RoHS compliant
