Electronic Components Distributor > Mac8 > Sockets > Sockets for laser diodes > LDS-0.8-2P-A 20pcs
LDS-0.8-2P-A20pcs
Category Sockets
Manufacture Mac8
Stock Order
Ship date 4week (inquiry before Shipment)
Price US$222.00
Standard Packing Qty 1pc
Minimum Order Qty 20pcs
Quantity cart
Mac8 Sockets for laser diodes LDS-0.8-2P-A 20pcs

PCB components
Sockets for laser diodes

Connector for Laser diode

With 50cm electric cable(red and black)

Material
Housing: PPS resin Black (UL94V-0)
Socket-body = Brass, Contact = BeCu
Finish: Au plating over Ni
Current Capacity: 14A
Rated voltage: 20V AC, DC
Withstanding Voltage: 500V AC, DC 1 min
Insulation Resistance: 500M Ohm and over
Contact Resistance: 10m Ohm and below/pin
Capacity of removal and Insertion: 100 times+
Cable size: AWG-18
Operating temperature range(degrees Celsius): -40 to +100
Adaptive male pin diameter: 0.6 ~ 0.8 phi mm

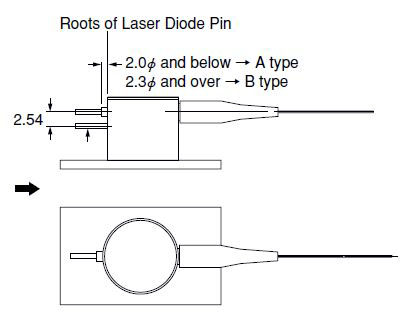

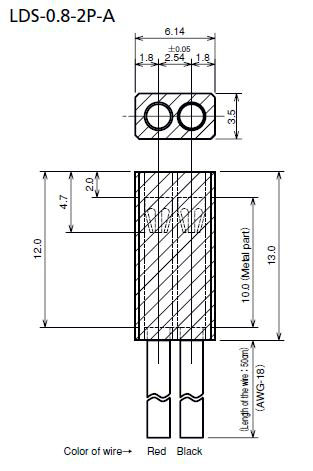

image_mac8_lds-0.8-2p-a.
image_mac8_lds-0.8.

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
LDS-0.8-2P-A 20pcs 20pcs US$222.00 US$11.10 1pc 4week
