GB-2-2 10pcs PCB mounting parts Mac8
| Category | PCB mounting parts |
| Manufacture | Mac8 |
| Stock | Order |
| Ship date | 1week (inquiry before Shipment) |
| Price | US$83.30 |
| Standard Packing Qty | 1pc |
| Minimum Order Qty | 10pcs |
PCB components
Bushes for insulation
Gel bushes for vibration control
Gel bush for vibration absorption [GB Series]
Use it to prevent vibration of PCB.
It can minimize the side to side vibration since it goes through a bolt.
Material
GEL part: αGEL(αGEL is the registered product)
Metal part
- Color part: Brass
- Washer part: Stainless
Operating temperature range (degrees Celsius): -40 to +200
Proper load (Kg/ 4 bearings): 2.5 to 4.0
Resonance point (Hz): 49 to 37
Resonance magnification (dB): 15 to 16
Recommended frequency (Hz): 2.5Kg - 70 ~, 4.0Kg - 55 ~

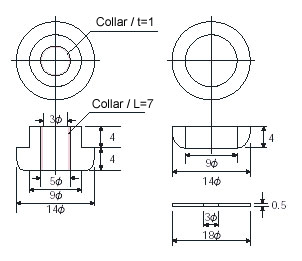

Mounting hole diameter: 9.2phi mm
Applicable PC Board thickness: 0.5 to 3.5
*This data is from 1.2mm PC board is in between gel bush
*Note that its load will change depending on the recommended used frequency.
RoHS compliant
Sort by selling qty
| Model No | Quantity | Price | Unit Price | SPQ | Ship date |
|---|---|---|---|---|---|
| GB-2-2 10pcs | 10pcs | US$83.30 | US$8.33 | 1pc | 1week |
