GB-1-1 10pcs PCB mounting parts Mac8
| Category | PCB mounting parts |
| Manufacture | Mac8 |
| Stock | Order |
| Ship date | 1week (inquiry before Shipment) |
| Price | US$83.30 |
| Standard Packing Qty | 1pc |
| Minimum Order Qty | 10pcs |
PCB components
Bushes for insulation
Gel bushes for vibration control

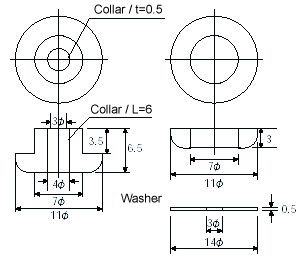

Gel bush for vibration absorption [GB Series]
Use it to prevent vibration of PCB.
It can minimize the side to side vibration since it goes through a bolt.
Material
GEL part: αGEL(αGEL is the registered product)
Metal part
- Color part: Brass
- Washer part: Stainless
Operating temperature range (degrees Celsius): -40 to +200
Proper load (Kg/ 4 bearings): 0.2 to 0.75
Resonance point (Hz): 64 to 42
Resonance magnification (dB): 1.0 to 3.0
Recommended frequency (Hz): 200g - 90 ~, 750g - 60 ~
Mounting hole diameter: 7.5phi mm
Applicable PC Board thickness: 7 to 9mm
*This data is from 1.0mm PC board is in between gel bush
*Note that its load will change depending on the recommended used frequency.
RoHS compliant
Sort by selling qty
| Model No | Quantity | Price | Unit Price | SPQ | Ship date |
|---|---|---|---|---|---|
| GB-1-1 10pcs | 10pcs | US$83.30 | US$8.33 | 1pc | 1week |
